Rack Mount Kit for Barracuda F12, F18, and F80

RM-BC-T2:

RM-BC-T2

Rack mount Kit for Barracuda F12 / F80 (Rev B) / F18 (REV B)


#RM-BC-T2
List Price: $149.00
Our Price: $144.00



All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

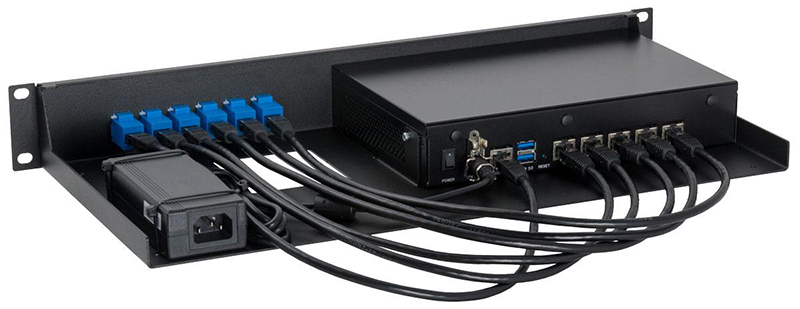

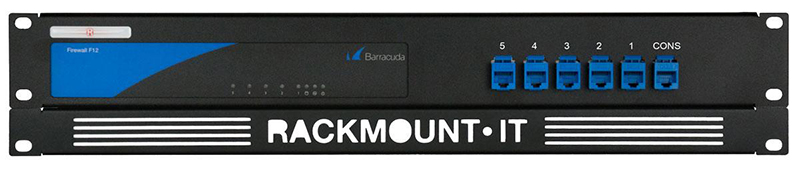

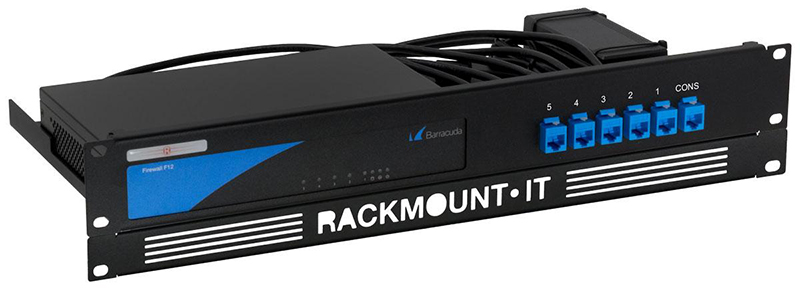

The RM-BC-T2 gives you the ability to mount your Barracuda in a 19" rack. The kit is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access.

Assembly will take about 5 minutes. Simply slide your Barracuda device in the kit, place the retainers and connect the supplied cables to the keystones.

Image Views:



Specifications
Manufacturer Rackmount.IT
Model Barracuda
For Use
Color RAL 9005 Jet Black
Height 1.3U
2U with the supplied front plate
Dimensions (height x width x depth) 2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front 6
Console port to the front Yes
Cables 6x 0.5m cables
Couplers 6x RJ45 couplers
What's in the box
  • 1x BC-Rack + RJ45 couplers
  • 1x Rackmount.IT front plate
  • Cables
  • Assembly materials
  • Installation guide

Download the RM-BC-T2 Datasheet (PDF).
