Rack Mount Kit for Barracuda F18, F80, X50, X100, and X200

RM-BC-T1:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Looking to save more?! Our rackmounts bundles are at the best price, best value, super convenient!

You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware

The RM-BC-T1 gives you the ability to mount your Barracuda in a 19" rack. The kit is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access.

Assembly will take about 5 minutes. Simply slide your Barracuda device in the kit, place the retainers and connect the supplied cables to the keystones.

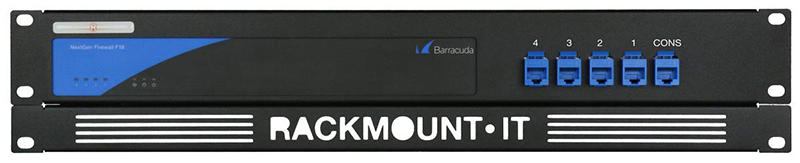

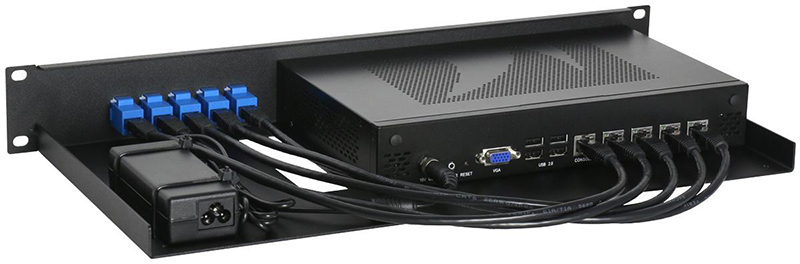

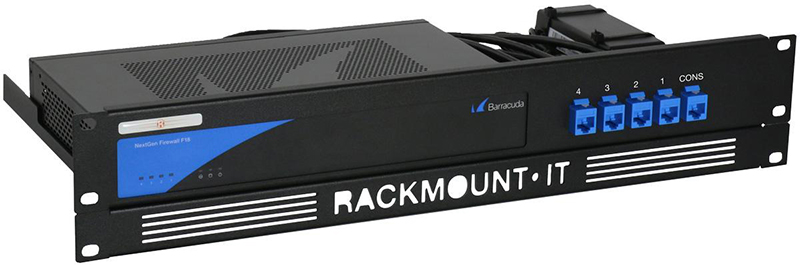

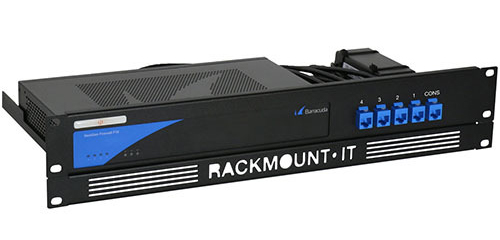

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Barracuda
For Use	Barracuda F18 Barracuda F80 Rev. A Barracuda X50 Barracuda X100 Barracuda X200
Color	RAL 9005 Jet Black
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	5
Console port to the front	Yes
Cables	5x 0.5m cables
Couplers	5x RJ45 couplers
What's in the box	1x BC-Rack + RJ45 couplers 1x Rackmount.IT front plate Cables Assembly materials Installation guide

Download the RM-BC-T1 Datasheet (PDF).
