Barracuda CloudGen WAN VT3000
The Global Secure SD-WAN Service Built Natively on Azure

Barracuda CloudGen WAN VT3000:

Barracuda CloudGen WAN provides easy to use secure SD-WAN and Firewall-asa-Service. Everything is centrally managed from one portal regardless how many users, locations, or cloud services need to be secured and connected.

To harness the power of Microsoft Azure and the Azure Global network it is easily deployed directly from the Azure Marketplace. With Barracuda CloudGen WAN you can create a pragmatic SASE solution on your terms.

Traditional data centers are going away

More than ten percent of organizations have already shut theirs down, and Gartner has predicted that will rise to 80 percent by 2025.

Benefits:

Features:

Connectivity and SD-WAN

Global secure SD-WAN service

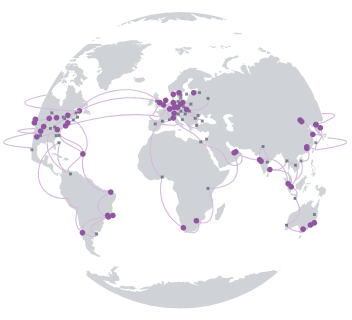

CloudGen WAN brings full SD-WAN functionality to Azure Virtual WAN, Microsoft’s native hybrid cloud service. Secure SD-WAN dynamically selects the most suitable uplink for each application in real time, based on traffic characteristics, available bandwidth, and latency between VPN endpoints. This lets you replace MPLS lines by globally connecting your sites via the Microsoft Global Network, the world’s fasted private network. Purpose-built for the cloud, CloudGen WAN provides seamless, automated access to your business-critical resourses, leveraging a rich feature-set including:

• Adaptive bandwidth protection
• Adaptive session balancing
• Forward error correction (FEC)
• SD-WAN breakout
• Dynamic bandwidth and latency detection
• Performance-based transport selection
• TINA—Barracuda’s proprietary VPN protocol
• Site-to-site connectivity
• Failover link support
• Dynamic quality of service
• WAN compression

Azure Virtual WAN

Directly deployed from Azure marketplace, the CloudGen WAN gateway becomes a part of Microsoft’s Azure Virtual Hub and, together with CloudGen WAN site devices, ensures optimized connectivity from every branch office to the nearest Azure Cloud entry point. Barracuda supports dynamic path selection across multiple ISPs for Azure Virtual WAN, giving you failsafe, always-on cloud connectivity. The close integration with native Azure services seamlessly integrates Barracuda CloudGen WAN into your Azure cloud infrastructure.

Dynamic bandwidth and latency detection

To achieve the best possible user experience across the WAN, CloudGen WAN onsite devices proactively measure the available bandwidths and quality of all internet uplinks and between VPN endpoints. The results are directly available to the security and SD-WAN policy engine to select the best suitable uplink per application or to disqualify an uplink if the bandwidth or latency fall outside of acceptable limits.

Application-based routing

A unique combination of next-generation security and adaptive WAN routing technology allows Barracuda CloudGen WAN to dynamically assign available bandwidth, uplink, and routing information based on protocol, user, location, and content as well as application, application categories, and even web content categories. This keeps expensive, highly available lines free for business- and mission-critical applications, while significantly reducing response times and freeing up additional bandwidth.

Management and Automation

Simple to deploy

CloudGen WAN is easy to set up and does not require specialized IT skills. Directly deployed from Azure marketplace, the service works out of the box with smart default configuration, suitable for all cloud and SaaS applications. CloudGen WAN runs natively as a SaaS service inside one or multiple Azure Virtual WAN regions and provides easy, automated access to the Microsoft Global Network. The service can either be rolled out to all locations as a pure SD-WAN solution alongside existing firewalls or as a secure SD-WAN solution replacing existing firewalls.

Zero-touch site deployment

Zero-touch deployment lets you deploy CloudGen WAN site devices directly from the factory to the desired remote location without requiring on-site IT personnel. Simply connect the unit and power it up. With no need for manual configuration on-site, zero-touch deployment allows you to deploy CloudGen WAN site devices across widely distributed organizations easily, rapidly, and at very low cost.

Simple to operate

Directly managed via the CloudGen WAN management portal for all regions and all sites across your global WAN, regardless of the number of cloud entry points or locations. The central cloud portal offers the highest degree of automation and unparalleled ease of use. CloudGen WAN continuously monitors and optimizes network performance to ensure uninterrupted always-on connectivity and high quality of service levels for your business-critical traffic and applications.

Once only central management

The CloudGen WAN management portal hosts security, networking, and SD-WAN connectivity rules that are applied and enforced automatically across all site devices and endpoints hosted with your CloudGen WAN subscription. Define an SD-WAN or security policy once and CloudGen WAN automatically distributes and enforces it across all locations and users.

Security

Advanced multi-layered security

CloudGen WAN is built on the same technology as CloudGen Firewall, Barracuda’s battle-tested enterprise firewall (“Recommended” in NSS Labs NGFW Group Test 2019). Purpose-built for the cloud, CloudGen WAN provides advanced multi-layered security to protect your business-critical resourses, leveraging a rich feature-set including:

• Advanced Threat Protection
• Intrusion detection and prevention
• Malware protection
• SSL inspection
• Stateful deep packet inspection
• Single pass architecture
• URL filtering--application-based ACL

URL filtering

The URL filtering feature of CloudGen WAN lets you create and enforce effective internet content and access policies by enabling highly granular, real-time visibility into online activity broken down by individual users and applications. It protects user productivity, blocks malware downloads and other web-based threats, and supports compliance by blocking access to unwanted websites and servers, providing an important additional layer of security alongside application control.

Advanced Threat Protection

The malware protection functionality built into Barracuda CloudGen WAN shields the internal network from malicious content by scanning web content (HTTP and HTTPs), email (SMTP, POP3), and file transfers (FTP/SFTP) via integrated malware protection based on Barracuda Advanced Threat Protection. It covers viruses, worms, trojans, malicious java applets, and programs using known exploits on PDF, picture and office documents, macro viruses, and many more, even when using stealth or morphing techniques for obfuscation. Resource-intensive sandboxing is offloaded to the Barracuda ATP Cloud with its multiple datacenters in the Americas, mainland Europe, and the UK. A hash fingerprint of each file and the good/bad classification of all sandboxed files are stored and cached for future use, effectively speeding up processing and guaranteeing near instantaneous results.

SSL interception

Barracuda CloudGen WAN can apply IPS, virus protection, application control, URL filtering, and even Advanced Threat Protection to SSL-encrypted web traffic using the standard 'trusted man-in-the-middle' approach. SSL interception can be fine-tuned to exempt local networks, users/groups, URL filter categories, or custom defined domains from SSL inspection.

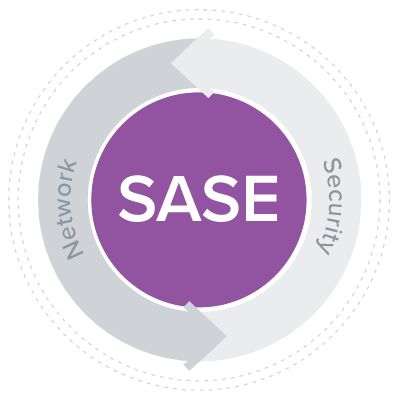

SASE

Practical SASE

Barracuda CloudGen WAN provides a practical SASE solution that is easy to deploy in Azure. While other SASE vendors use their own cloud and their own network, CloudGen WAN allows leveraging the global presence and power of Azure data centers and Microsoft’s global network. For all organizations leveraging Azure or planning to adopt Azure it makes perfect sense to deploy a SASE offering on the same public cloud platform.

For organizations having certain geopolitical requirements or using applications requiring an organization’s IP address as source IP address, every CloudGen WAN site device serves as a private enforcement node for SWG, FWaaS enforcement and as entry point to the cloud service for remote endpoints. The SASE enforcement points in Azure, as well as the private enforcement points on the site devices, are controlled by security policies defined centrally in the CloudGen WAN management portal, without requiring administrators to know where the traffic enters the service.

Specifications:

Barracuda CloudGen WAN
	VT100	VT500	VT1500	VT3000	VT5000
Performance
Site performance up to	300 Mbps	700 Mbps	1.5 Gbps	3.8 Gbps	9.3 Gbps
Recommended number of users	50-100	150-300	300-1000	1,000-4,000	6,000-9,000
Concurrent sessions	80,000	250,000	500,000	2,100,000	4,000,000
New session/s	8,000	12,000	20,000	115,000	190,000
Hardware
Licensed vCPUs	2	4	8	10	up to 32
Virtual NICs	5-16x

Model Comparison:

CloudGen WAN gateways (hosted in Microsoft Azure)

Scale Unit	2	4	10	14	20	30	40	60	80
Performance
Aggregated bandwidth	1 Gbps	2 Gbps	5 Gbps	7 Gbps	10 Gbps	15 Gbps	20 Gbps	30 Gbps	40 Gbps
Max. single tunnel performance	500 Mbps	1 Gbps	2.5 Gbps	3.5 Gbps	5 Gbps	7 Gbps	10 Gbps	15 Gbps	15 Gbps

CloudGen WAN site devices

Model:	T100	T200	T400	T600	T900	VT100	VT500	VT1500	VT3000	VT5000
Performance1
Site performance up to	300 Mbps	700 Mbps	1.5 Gbps	1.5 Gbps	9.3 Gbps	300 Mbps	700 Mbps	1.5 Gbps	3.8 Gbps	9.3 Gbps
Recommended number of users	50-100	150-300	300-1,000	1,000-4,000	6,000-9,000	50-100	150-300	300-1000	1,000-4,000	6,000-9,000
Concurrent sessions	80,000	250,000	500,000	2,100,000	4,000,000	80,000	250,000	500,000	2,100,000	4,000,000
New session/s	8,000	12,000	20,000	20,000	20,000	8,000	12,000	20,000	115,000	190,000
Hardware
Form factor	Desktop	Desktop	1U rack mount	1U rack mount	1U rack mount	N/A
Copper ethernet NICs [GbE]	4x1	6x1	8x1	10x1	8x1	N/A
Fiber NICs (SFP) [GbE]	-	-	-	8x1	8x1	N/A
Fiber NICs (SFP+) [GbE]	-	-	2x10	2x10	4x10	N/A
Fiber NICs (QSFP+) [GbE]	-	-	-	-	2x40	N/A
Integrated switch	-	8-port	-	-	-	N/A
Virtual NICs	N/A					5-16x

Technical Specs

Documentation:

Download the Barracuda Networks CloudGen WAN Data Sheet (PDF)

Download the Barracuda Networks CloudGen WAN Product Overview Data Sheet (PDF)
